# Formlabs Form 4

Overview

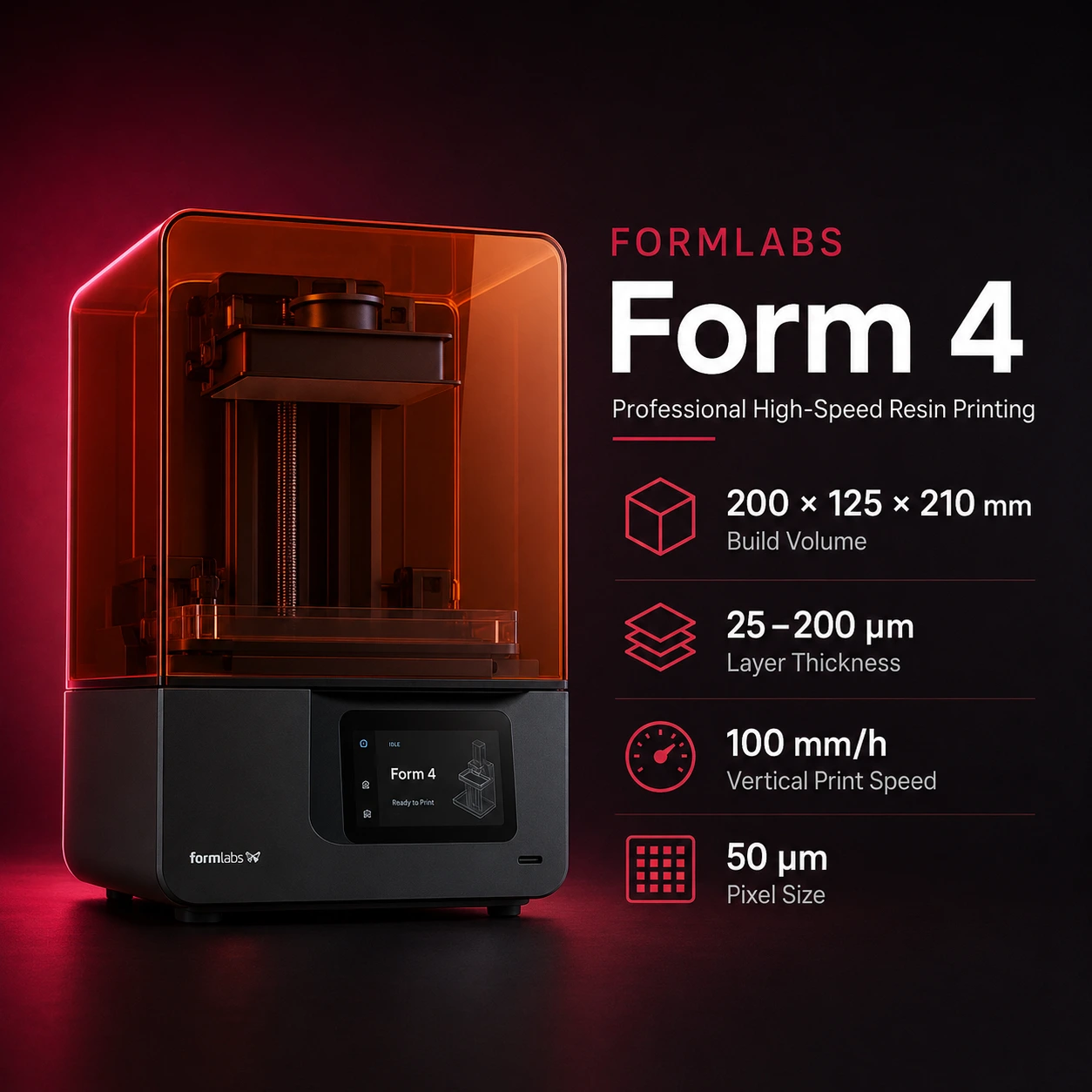

The Formlabs Form 4 is a professional masked stereolithography 3D printer built around Formlabs' Low Force Display (LFD) print engine. It combines fast resin printing with a 200 × 125 × 210 mm build volume, automated resin handling, a broad professional materials ecosystem, and integrated monitoring.

Formlabs specifies vertical print speeds of up to 100 mm/hour under its maximum-speed test conditions, while many typical jobs can be completed in under two hours depending on resin, layer thickness, part height, and geometry. The system is designed for professional prototyping, engineering, manufacturing aids, tooling, and small-batch production.

Key Benefits

• Low Force Display masked SLA technology
• 200 × 125 × 210 mm build volume
• 25–200 µm layer thickness, material-dependent
• Up to 100 mm/hour maximum vertical print speed
• 50 µm pixel size
• Documented feature-size-dependent XY dimensional tolerances
• Automatic resin dispensing
• Integrated 5 MP camera
• Broad Formlabs resin ecosystem
• Optional Open Material Mode for third-party 405 nm photopolymer resins

Best For

1. Engineering prototypes
2. Product development
3. Manufacturing aids
4. Jigs and fixtures
5. Tooling
6. Small-batch production
7. Research and education

Technical Specifications

Note: The 100 mm/hour maximum is achieved under Formlabs' specified maximum-speed conditions using Fast Model Resin and 200 µm layers. Print speed varies with material, layer height, part geometry, and print settings.

Note: Formlabs' XY tolerance figures are feature-size dependent and include lower absolute tolerance limits; they should not be interpreted as a universal ±0.15% tolerance for every feature size.

Material Compatibility

The Form 4 supports a broad library of Formlabs photopolymer materials for general-purpose, engineering, flexible, rigid, high-temperature, flame-retardant, silicone, ceramic, and casting applications.

General and Engineering Materials

• General Purpose Resins
• Tough and Durable Resins
• Rigid Resins
• Flexible and Elastic Resins
• High Temperature Resin
• Flame Retardant Resin
• Silicone materials
• Ceramic materials
• Castable materials

Compatible third-party 405 nm photopolymer resins can also be used through Formlabs Open Material Mode.

Important: Open Material Mode is an optional per-printer capability and should not be treated as included with the standard Form 4 Basic Package unless the purchased configuration explicitly includes it.

Important: Standard Form 4 is not the Form 4B medical/dental variant. Workflows that require validated biocompatible printing should use the appropriate Form 4B configuration and validated materials.

Print Technology and Accuracy

Form 4 uses Formlabs' Low Force Display technology, combining a high-power backlight, Light Processing Unit, release texture, flexible-film resin tank, and intelligent control systems to cure each resin layer across the build area simultaneously.

• 50 µm native pixel size
• Pre-tuned anti-aliasing
• Feature-size-dependent XY dimensional tolerances
• Precision resin heating
• Force sensing
• Debris detection

Note: Formlabs documents typical XY tolerances of ±0.15% for 1–30 mm features, ±0.2% for 31–80 mm features, and ±0.3% for 81–150 mm features, each with specified lower absolute limits.

Automation and Monitoring

The Form 4 ecosystem incorporates automated workflow features intended to improve reliability and reduce manual setup.

• Automatic resin dispensing
• Automatic material recognition
• Precision resin temperature control
• Integrated print monitoring camera
• Remote monitoring through Formlabs Dashboard
• Print history
• Timelapse capture
• Automated print preparation through PreForm

Comparison Section

Direct internal comparison links have been intentionally deferred until additional resin printers are indexed in Print3DIndex.

Note: This comparison represents general printer categories rather than specific competing models. Specific resin-printer comparisons should be added once directly comparable resin models are indexed.

Callout Section

Recommended use: The Form 4 is particularly well suited to professional users who need repeatable resin printing, fine detail, broad engineering-material support, and a tightly integrated printing and post-processing workflow.
