Revopoint Trackit 3D Blue-laser scanning with NIR optical tracking Scanner
Revopoint Trackit SR Standard Edition
Revopoint Trackit 3D
RevopointTrackit SRprofessional 3D scannerindustrial 3D scanner
Extra Features
Compact row for standout or scanner-specific features only.
30 blue crossed laser lines17 blue parallel laser linesSingle blue deep-hole laser lineMarker-free optical trackingStandalone marker scanningWireless multi-position scanning with optional battery gripWi-Fi 6 wireless streamingReplaceable scanner batteries
Detailed Description
# Revopoint Trackit SR Standard Edition
Overview

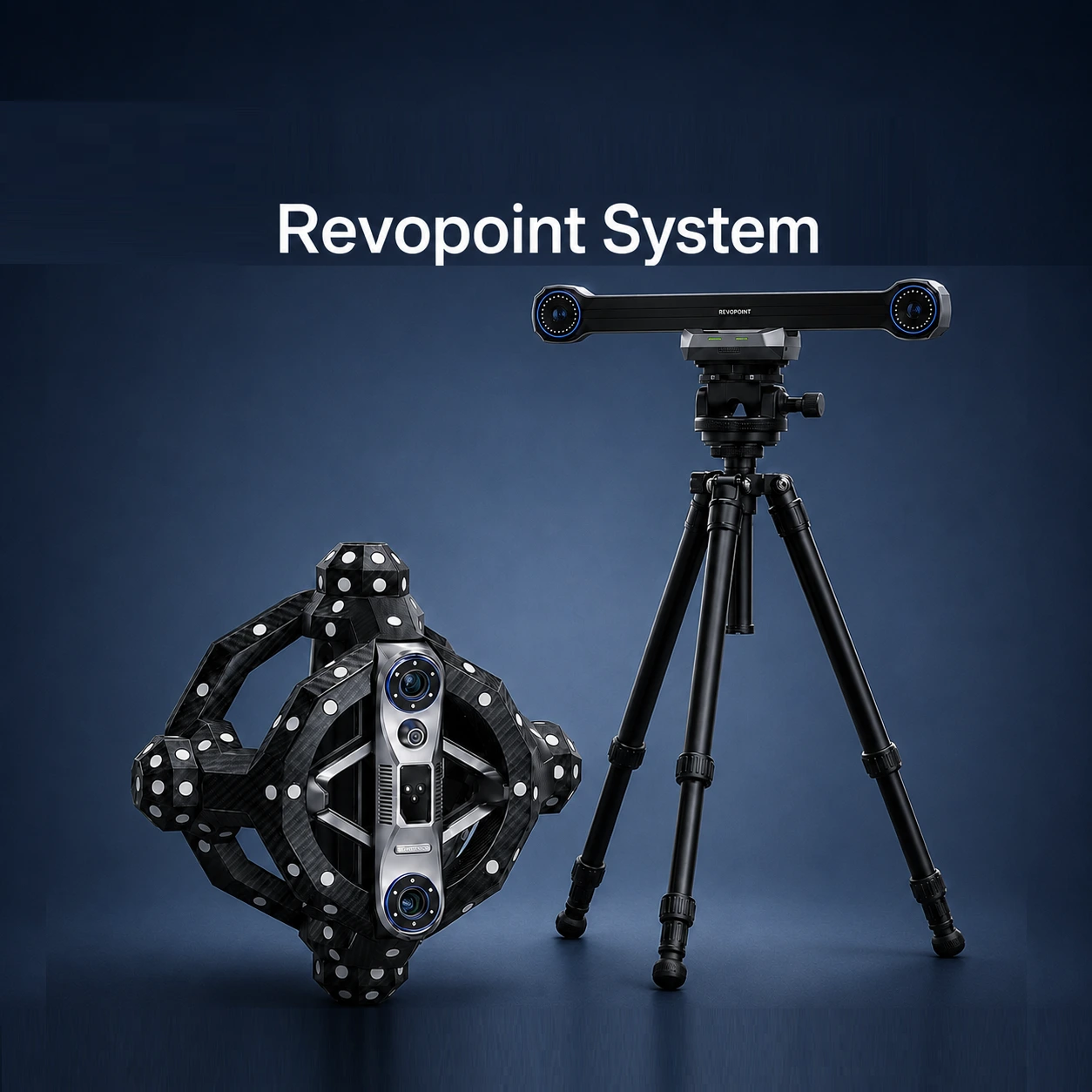

The Revopoint Trackit SR Standard Edition is a portable wireless optical-tracking 3D scanner for reverse engineering, inspection, product development, automotive work, and dimensional capture. It combines a handheld blue-laser scanner with a separate NIR tracker that calculates the scanner's position in real time.
Optical-tracking mode supports marker-free scanning while the scanner remains visible to the tracker. The scanner can also operate independently in marker mode. Larger workpieces can be captured through multi-position workflows using shared references, although wireless tracker repositioning requires the optional battery grip.
Key Benefits
- 0.02 mm manufacturer-stated single-frame accuracy under controlled laboratory conditions
- Tracking-system volumetric accuracy of 0.025 mm + 0.04 mm × L, with L in metres
- Acquisition speeds up to 2,000,000 points per second
- Three blue-laser modes for detailed surfaces, larger areas, and recessed geometry
- Wi-Fi 6 communication for the scanner and tracker
- Marker-free optical tracking and standalone marker scanning
- Recommended object-size range from 10 mm to 4 m
- Integrated RGB camera for texture capture
- Replaceable scanner batteries with up to 2.5 hours of stated battery life
Best For
- Reverse engineering of manufactured parts
- Automotive components and vehicle-related projects
- Product design and digital reconstruction
- Engineering inspection and dimensional documentation
- Scanning dark, metallic, or reflective industrial surfaces
- Capturing small details and medium-to-large components
Scanning Technology and Performance
The Trackit SR provides three blue-laser scanning modes. Fine Mode projects 30 crossed laser lines for detailed, high-speed surface acquisition. Far Mode uses 17 parallel laser lines with a longer working distance and a larger capture area. Deep Hole Mode uses one laser line for narrow recesses, grooves, grilles, and other difficult-to-reach geometry.
The scanner reaches a maximum stated acquisition speed of 2,000,000 points per second. Its fused point distance is specified at up to 0.05 mm, while single-frame accuracy is specified at 0.02 mm under controlled laboratory conditions.
Available Scanning Modes
- Fine Mode
- 30 blue crossed laser lines
- 200–400 mm working distance
- Detailed and complex surfaces
- Far Mode
- 17 blue parallel laser lines
- 250–500 mm working distance
- Faster coverage of larger areas
- Deep Hole Mode
- One blue laser line
- 200–400 mm working distance
- Holes, slots, grooves, and recessed features
Technical Specifications
| Specification | Value |
|---|---|
| Scanner technology | Blue-laser scanning with NIR optical tracking |
| Single-frame accuracy | 0.02 mm |
| Tracking volumetric accuracy | 0.025 mm + 0.04 mm × L (m) |
| Fused point distance | Up to 0.05 mm |
| Maximum scan speed | Up to 2,000,000 points/s |
| Laser modes | 30 crossed lines, 17 parallel lines, 1 single line |
| Scanner working distance | 200–500 mm, mode-dependent |
| Tracker working distance | 800–2,500 mm |
| Single capture area | 123 × 130 mm at 200 mm to 330 × 325 mm at 500 mm |
| Tracking volume | 3 m³ |
| Recommended object size | 10 mm–4 m |
| Connectivity | Wi-Fi 6, USB 3.0 |
| Scanner weight | 1.0 kg |
| Tracker weight | 1.5 kg |
| Scanner dimensions | 250 × 250 × 177 mm |
| Tracker dimensions | 441 × 111 × 103 mm |
| Operating temperature | 0–30°C |
| Recommended accuracy environment | 20–25°C |
| Texture capture | Integrated RGB camera |
| Laser classification | Class 2 |
| Output formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
Note: Published accuracy values are obtained in controlled laboratory conditions. Calibration, environmental conditions, object geometry, surface characteristics, and operator technique can affect real-world results.
Tracking and Scanning Workflow
During optical-tracking operation, the tracker observes the handheld scanner and calculates its position in real time. This enables marker-free scanning while the scanner remains visible to the tracker.
The tracker has a stated working distance of 800–2,500 mm and a tracking volume of 3 m³. Revopoint's multi-position workflow uses shared reference points to align tracker positions around larger workpieces.
The handheld scanner can also operate independently in marker mode when optical tracking is unsuitable or the scanner moves outside the tracker's view.
Important: Wireless multi-position tracker operation requires the optional battery grip. The battery grip is not included with the Standard Edition.
Software and File Compatibility
The Trackit SR uses Revo Track for scanner control, calibration, point-cloud processing, editing, and model export. Revo Track supports point-cloud, mesh, and textured-model formats for inspection, reverse engineering, CAD, visualization, and additive-manufacturing workflows.
Supported Output Formats
- PLY
- OBJ
- STL
- ASC
- 3MF
- GLTF
- FBX
Related Software
- Revo Track: Scanning, calibration, processing, editing, and export
- Revo Design: Optional mesh-editing and scan-to-CAD software
- Geomagic Design X Go: Available in selected commercial bundles
- Revo Measure: Included with the CMM Edition rather than the Standard Edition
Important: Optional software and licences should not be presented as included with every Standard Edition purchase.
Connectivity and Computer Requirements
Wi-Fi 6 supports wireless communication between the scanning system and the host computer. The scanner uses replaceable batteries, with Revopoint stating up to 2.5 hours of battery life under its test conditions. USB 3.0 or newer is required for wired computer connections.
Minimum Windows Requirements
- Windows 10 or Windows 11, 64-bit
- 32 GB RAM
- Intel Core i7 13th Gen or AMD Ryzen 7 7000 series or newer
- NVIDIA GeForce RTX 3060 with 8 GB VRAM
- USB 3.0 or newer for wired operation
Minimum macOS Requirements
- macOS 11 or later
- Apple M2 Pro
- 16 GB RAM
Recommended use: Use a workstation exceeding the minimum requirements when processing dense scans, large objects, or multi-position projects.
Frequently Asked Questions
FAQ
What scanning technology does the Revopoint Trackit SR use?
It combines blue-laser scanning with a separate optical tracking system for accurate, marker-free scanning.
What is the stated accuracy of the Trackit SR?
Revopoint specifies single-frame accuracy of up to 0.02 mm under controlled conditions.
What is the scanner’s working distance?
The scanner operates at approximately 200–500 mm, depending on the selected scanning mode.
What scan area does it support?
The maximum stated single capture area is approximately 330 × 325 mm.
What is the optical tracking volume?
The tracking system provides a stated tracking volume of 3 m³.
Does the Trackit SR require tracking markers?
It can scan without markers while the scanner remains visible to the optical tracker. Markers may still be used for certain workflows.
Can it capture color and texture?
Yes. It includes an RGB camera for color and texture capture.
Which file formats does it support?
Supported formats include STL, OBJ, PLY, ASC, 3MF, GLTF, and FBX.
What software is used with the scanner?
The primary scanning and processing software is Revo Track.
Who is the Trackit SR best suited for?
It is best suited for reverse engineering, industrial inspection, product development, automotive scanning, and professional 3D digitization.
Can it scan dark or metallic objects?
