# Revopoint INSPIRE 2

Overview

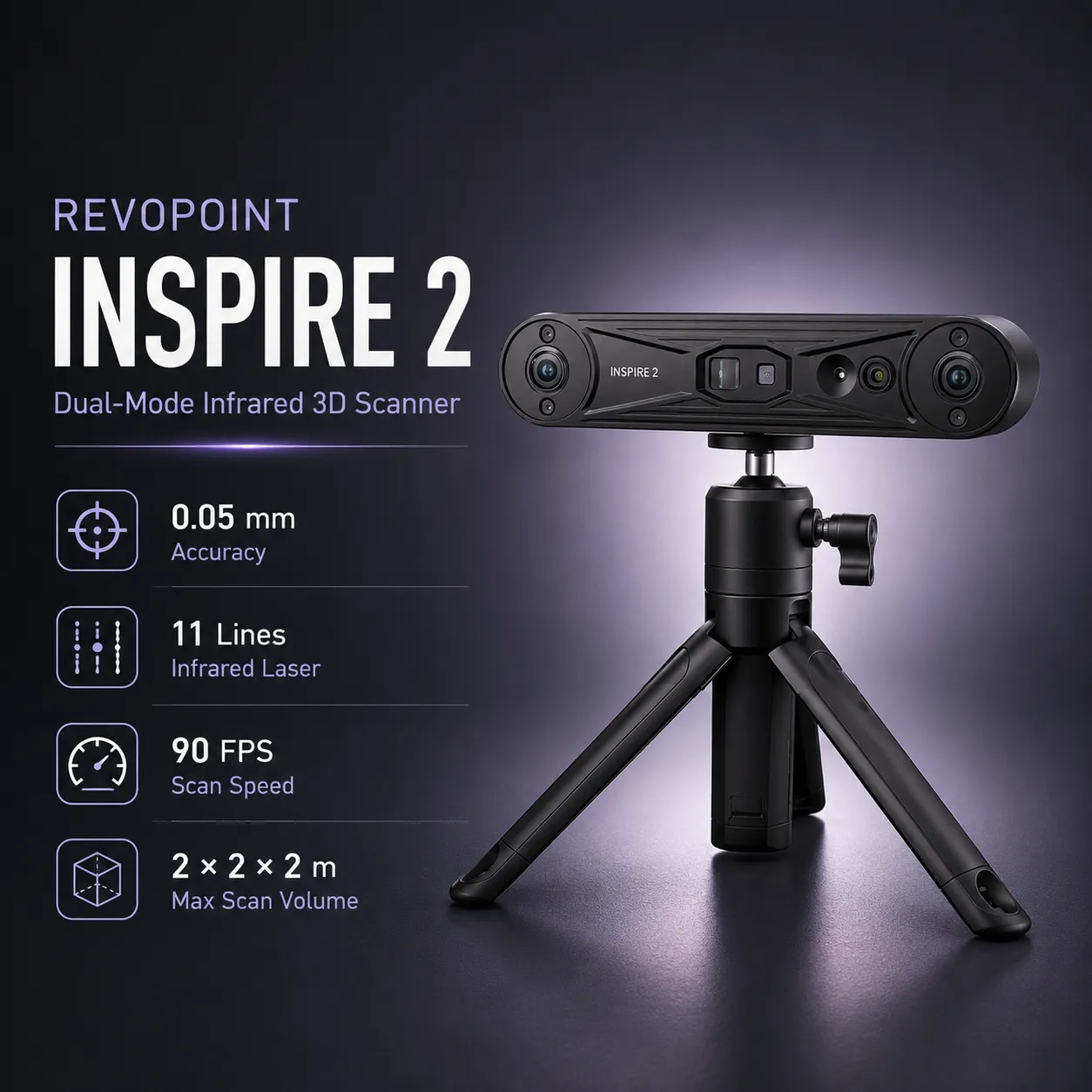

The Revopoint INSPIRE 2 is a lightweight dual-mode handheld 3D scanner that combines 11 parallel infrared laser lines with dual-camera infrared structured light. It is aimed at makers, 3D-printing users, designers, digital creators, educators, and entry-level reverse-engineering workflows that need better surface handling and accuracy than a basic hobby scanner.

At approximately 190 g, INSPIRE 2 is compact enough for mobile use while still supporting desktop scanning. It offers Wi-Fi 6, USB Type-C, Bluetooth 4.1, full-color capture, outdoor scanning, and 1.5× / 2× optical zoom.

The two scanning modes serve different jobs. The infrared multi-line laser mode is optimized for dark, shiny, and low-texture surfaces and reaches up to 90 FPS with supported GPU acceleration. Full-field structured light is intended for feature-rich small-to-medium objects, people, and marker-free capture at up to 18 FPS.

Revopoint publishes up to 0.05 mm single-frame accuracy, up to 0.03 mm single-frame precision, and 0.05 mm + 0.1 mm × L volumetric accuracy when marker tracking is used.

For current product details, see the official Revopoint INSPIRE 2 page. Setup and operating guidance are available through the official INSPIRE 2 support page and INSPIRE 2 user manual.

Key Strengths

• 11 parallel infrared laser lines
• Dual-camera infrared structured light
• Up to 0.05 mm single-frame accuracy
• Up to 0.03 mm single-frame precision
• 0.05 mm + 0.1 mm × L volumetric accuracy with marker tracking
• Up to 0.10 mm fused point distance
• Up to 90 FPS laser scanning with supported GPU acceleration
• Up to 40 FPS laser scanning with CPU processing
• Up to 18 FPS full-field structured-light scanning
• 1.5× and 2× optical zoom
• Wi-Fi 6, USB Type-C, and Bluetooth 4.1
• Full-color RGB scanning
• Outdoor operation up to 20,000 lux
• 190 g scanner weight
• 2 × 2 × 2 m maximum published scan volume
• Revo Scan 6 and Revo Metro software support
• Revo Mirror PC-to-mobile scan streaming
• 3D Gaussian Splatting support through Revo Scan 6

Technical Specifications

Accuracy note: Single-frame accuracy, precision, fused point distance, and volumetric accuracy are different metrics. The 0.10 mm fused point-distance figure is not 0.10 mm dimensional accuracy.

Laboratory note: Revopoint states that its accuracy and precision figures are measured under controlled laboratory conditions. Calibration, object geometry, surface properties, lighting, temperature, tracking, and operator technique can affect real-world results.

Infrared Multi-Line Laser Mode

The infrared laser mode uses 11 parallel lines and is intended for surfaces that can be difficult for ordinary structured-light scanners.

Revopoint specifically positions this mode for dark, shiny, low-texture objects and smaller mechanical parts. Published performance includes up to 90 FPS with supported GPU acceleration, up to 40 FPS with CPU processing, up to 0.05 mm single-frame accuracy, and a 200–400 mm indoor working distance.

Laser scanning requires markers. Revopoint recommends an irregular marker pattern with at least five markers visible during scanning.

For a more precision-focused blue-light reverse-engineering platform, compare the Revopoint MetroX Pro.

Full-Field Infrared Structured Light

Full-field structured light is the more flexible mode for feature-rich objects, faces, bodies, figurines, sculptures, and color capture.

Revopoint publishes up to 18 FPS in this mode.

Structured-light scanning can work without markers when the object has enough natural geometry. Flat, repetitive, or featureless surfaces may still require markers.

Unlike laser mode, full-field structured-light scanning can also work directly with compatible mobile devices.

Optical Zoom

INSPIRE 2 includes projector-side 1.5× and 2× optical zoom for adapting the projected pattern to smaller details or mixed-geometry surfaces.

Optical zoom changes the capture setup rather than increasing dimensional accuracy beyond the manufacturer's published specification.

Scan Volume and Capture Area

Revopoint publishes a minimum scan volume of 20 × 20 × 20 mm and a maximum scan volume of 2 × 2 × 2 m.

The single-frame capture area is smaller: approximately 130 × 129 mm at 200 mm to 293 × 257 mm at 400 mm indoors.

That distinction matters because a 2 m object must be captured across many overlapping frames rather than in one image.

Tracking and Volumetric Accuracy

INSPIRE 2 supports:

• Feature tracking
• Marker tracking
• Global Marker tracking

Laser mode requires markers. Full-field structured light can scan feature-rich objects without markers.

Revopoint publishes volumetric accuracy of 0.05 mm + 0.1 mm × L, where L is object length in metres, when marker tracking is used.

For users comparing scanner specifications, see 3D Scanner Accuracy vs Resolution: What Actually Matters in 2026?.

Outdoor Scanning

INSPIRE 2 supports outdoor scanning up to approximately 20,000 lux.

Revopoint recommends avoiding direct sunlight.

The published outdoor working distance is 150–250 mm, narrower than the 200–400 mm indoor range.

Dark, Shiny, and Difficult Surfaces

The 11-line infrared laser mode is designed to scan many dark or shiny surfaces without scanning spray.

Transparent, mirror-like, or strongly specular objects may still require scanning spray or developer.

Important: “No scanning spray” is not a universal guarantee for every reflective or transparent surface.

Full-Color Capture

INSPIRE 2 includes an RGB camera for full-color texture capture.

Color is useful for digital archiving, figurines, cultural objects, animation assets, people, and product visualization.

For reverse engineering, texture quality does not improve dimensional accuracy.

Mobile and Wireless Workflow

INSPIRE 2 supports Wi-Fi 6 and USB Type-C, but the workflow differs by scanning mode.

Full-Field Structured Light

Can connect directly to supported mobile devices through Revo Scan.

Multi-Line Laser

Does not support direct standalone mobile scanning.

Laser mode requires a PC. Revo Mirror can then stream the PC scanning interface to a phone for preview and control.

Important: Wi-Fi support does not mean every scanning mode works independently from a phone.

Software

INSPIRE 2 currently supports Revo Scan 6 and Revo Metro as primary scanning applications.

Revo Scan 6

Runs on PC and mobile platforms and adds:

• 3D Gaussian Splatting
• AI-powered intelligent segmentation
• Standard scanning and processing tools
• Mobile-device support

Revo Metro

Runs on PC and provides core scanning, point-cloud, alignment, editing, and meshing functions.

Revo Mirror

Provides PC-to-mobile screen streaming and control.

For scan-to-CAD work, Revopoint also offers Revo Design as an optional application.

Output Formats

Current Revopoint documentation lists:

• PLY
• OBJ
• STL
• ASC
• 3MF
• GLTF
• FBX
• Splat

Format availability depends on the processed model type. Splat output belongs to the 3D Gaussian Splatting workflow rather than conventional CAD or 3D-printing mesh export.

Reverse Engineering and 3D Printing

INSPIRE 2 can support entry-level reverse engineering and scan-to-print work.

A typical workflow is to capture the part, clean and fuse the point cloud, generate a mesh, export an appropriate format, rebuild CAD geometry when editable engineering features are required, and validate dimensions against the original object.

A scan mesh is not automatically a parametric CAD model.

For higher-end dimensional work, compare the Revopoint MetroX Pro or Revopoint Trackit SR.

For broader buying guidance, see Best 3D Scanners for Reverse Engineering in 2026.

INSPIRE 2 vs Related Scanners

INSPIRE 2 is strongest when low weight, infrared surface handling, full-color capture, and a relatively affordable price matter more than professional metrology features.

Limitations and Practical Considerations

• Infrared laser scanning requires markers.
• The 90 FPS maximum requires supported GPU acceleration.
• Full-field structured light is limited to 18 FPS.
• Multi-line laser scanning requires a PC.
• Mobile laser use depends on Revo Mirror rather than native mobile laser processing.
• Outdoor operation is limited to about 20,000 lux and should avoid direct sunlight.
• Transparent and mirror-like surfaces may require preparation.
• Splat output is for 3DGS visualization, not conventional CAD geometry.
• The 2 × 2 × 2 m figure is maximum object range, not single-frame capture size.

Callout Section

Recommended use: Choose Revopoint INSPIRE 2 when you want a lightweight scanner for 3D printing, creative capture, people, dark or shiny objects, and entry-level reverse engineering. Use infrared laser for difficult surfaces and full-field structured light for marker-free feature-rich objects and direct mobile scanning.
