EINSTAR VEGA

# EINSTAR VEGA

Overview

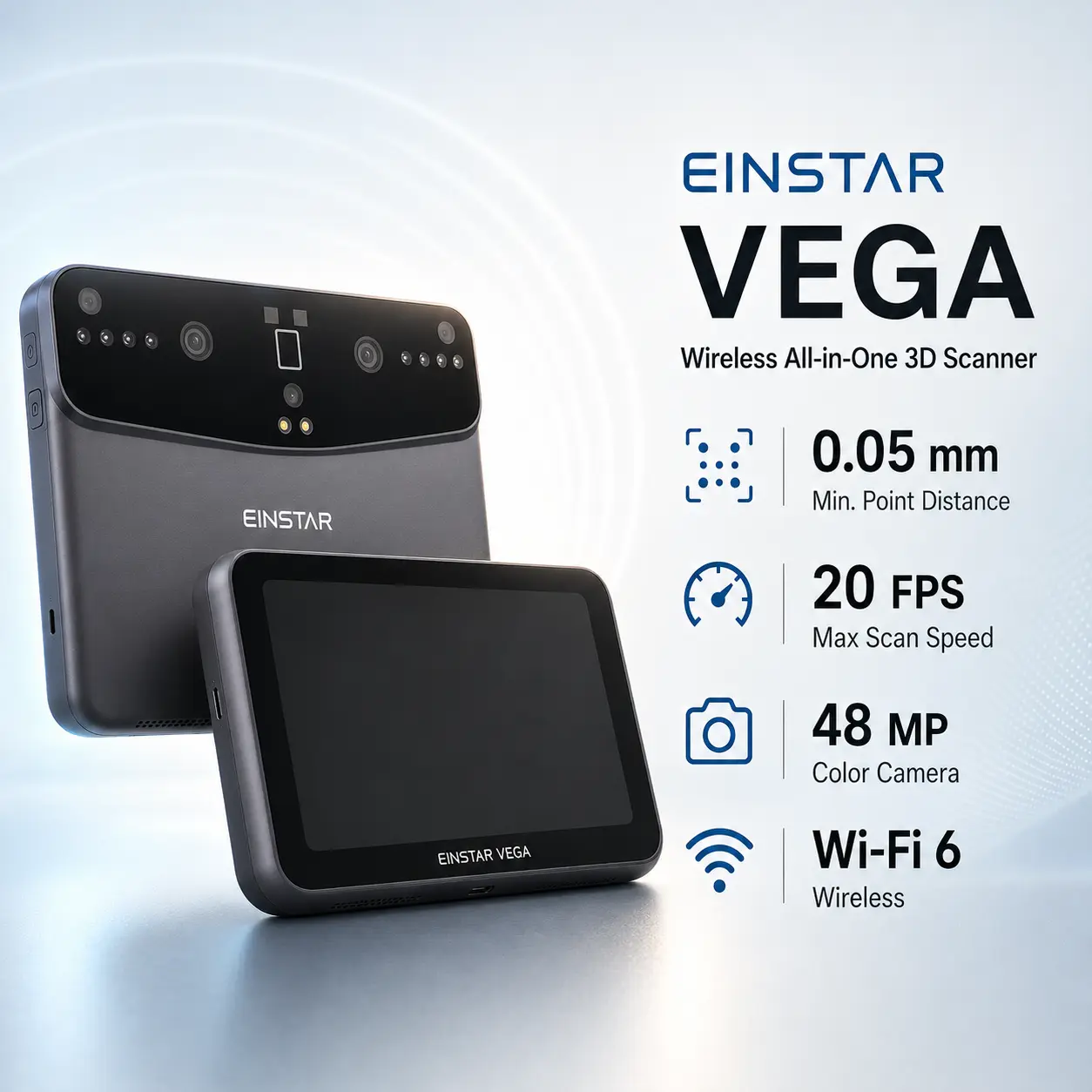

The EINSTAR VEGA is a wireless all-in-one handheld 3D scanner that can capture, process, review, and export scans without keeping a laptop connected. It combines infrared MEMS in HD Mode for finer-detail capture with infrared VCSEL in Fast Mode for broader coverage of medium-to-large subjects.

VEGA integrates an 8-core 2.4 GHz processor, 32 GB LPDDR4 RAM, 32 GB eMMC storage plus a 512 GB SSD, a built-in 5000 mAh battery, and a 6.4-inch 2K OLED touchscreen. A dedicated 48 MP RGB camera adds full-color texture capture.

For current technical documentation, see the official EINSTAR VEGA specifications and VEGA download center.

Key Benefits

• Wireless all-in-one scanning
• Infrared MEMS HD Mode
• Infrared VCSEL Fast Mode
• 0.05–3 mm HD point distance
• 0.5–10 mm Fast point distance
• Up to 15 FPS in HD Mode
• Up to 20 FPS in Fast Mode
• 100–350 mm HD working distance
• 270–1500 mm Fast working distance
• 48 MP full-color camera
• 6.4-inch 2K OLED touchscreen
• 32 GB RAM and 512 GB SSD
• Wi-Fi 6 and USB Type-C
• 5000 mAh built-in battery
• Feature, Texture, Marker, and Hybrid alignment
• Scanning rewind and automatic base-plane detection
• Outdoor scanning support
• IP50 dust protection

Best For

1. Portable scanning without a laptop
2. 3D-printing and product capture
3. People and heritage scanning
4. Medium-to-large objects
5. Outdoor and full-color workflows

Technical Specifications

EINSTAR VEGA Accuracy vs Resolution

A critical distinction is that EINSTAR's current VEGA specification table does not publish one universal numerical accuracy value.

The often-quoted 0.05 mm figure is the minimum point distance in HD Mode, not a manufacturer-stated 0.05 mm dimensional accuracy claim.

Point distance describes scan-data density; accuracy describes dimensional closeness to the real object.

That difference matters when comparing VEGA with scanners such as the Creality CR-Scan Raptor Pro or Revopoint MIRACO Plus, which publish numerical accuracy values for defined workflows.

For more context, see 3D Scanner Accuracy vs Resolution.

HD and Fast Scanning Modes

HD Mode

HD Mode uses infrared MEMS projection for denser detail capture.

• 0.05–3 mm point distance
• Up to 15 FPS
• 100–350 mm working distance
• 2 MP infrared camera

It is the better fit for smaller products, sculptures, models, props, and objects where finer surface detail matters.

Fast Mode

Fast Mode uses infrared VCSEL for wider-area scanning.

• 0.5–10 mm point distance
• Up to 20 FPS
• 270–1500 mm working distance
• 1.3 MP infrared camera

It is better suited to people, sculptures, furniture, large props, heritage objects, and vehicle-scale reference scanning.

Standalone Workflow and StarVision

VEGA combines the scanner, processor, display, storage, and battery into one portable unit. This makes it useful in workshops, studios, classrooms, museums, field projects, and other locations where carrying a scanning workstation is inconvenient.

Complex mesh cleanup, CAD reconstruction, and dimensional inspection can still be easier on a full-size computer.

Projects can be transferred to StarVision for Windows or macOS when a larger editing workspace is needed. Current software and system support are available through the official VEGA download center.

Full-Color Capture

The 48 MP RGB camera records texture information for heritage work, people scanning, digital art, props, AR/VR assets, archives, and product visualization.

Texture resolution and geometric accuracy are separate; a high-resolution RGB image does not increase dimensional scan accuracy.

Alignment, Rewind, and Base-Plane Detection

VEGA supports Feature, Texture, Marker, and Hybrid alignment. Marker-based workflows are useful for smoother or less distinctive geometry, while feature and texture alignment can reduce marker use on suitable objects.

The scanner also supports 12 mm markers in Fast Mode for selected large-object workflows.

Scanning Rewind lets the user roll back recent bad scan data rather than restarting the entire project. Automatic base-plane detection can remove a table, turntable, floor, or other support plane while scanning.

Wireless, Battery, and Outdoor Use

Built-in Wi-Fi 6 supports wireless transfer, sharing, and screen casting. USB Type-C provides wired transfer and charging.

The regular VEGA weighs about 535 g. Its built-in 5000 mAh battery provides roughly 1.5–2 hours of continuous operation depending on the scanning scenario, and external power-bank use is supported.

EINSTAR lists VEGA for outdoor scanning and has separately described operation under sunlight levels up to about 100,000 lux under suitable conditions.

VEGA carries an IP50 rating. That means dust protection, not waterproofing.

Reverse Engineering and 3D Printing

VEGA can create useful meshes and reference geometry for 3D printing and design, but it is not an automatic scan-to-parametric-CAD system. Reverse engineering still requires mesh cleanup, reference geometry, feature reconstruction, CAD modeling, and dimensional validation.

For tolerance-critical work, published accuracy and volumetric-accuracy specifications matter alongside point spacing. For vehicle-focused workflows, see Best 3D Scanners for Automotive Parts in 2026.

Comparison Table: EINSTAR VEGA and Alternatives

VEGA's advantage is not the smallest accuracy number. It is the integration of scanning, processing, display, storage, battery power, and wireless operation in one device.

EINSTAR VEGA vs EINSTAR 2

The EINSTAR VEGA vs EINSTAR 2 comparison is mainly standalone convenience versus faster hybrid laser scanning.

The EINSTAR 2 combines 17 parallel blue laser lines with IR VCSEL. EINSTAR lists up to 2.5 million points/s in Laser HD and 4.8 million points/s in IR Rapid.

Choose VEGA for on-device scanning and laptop-free field use. Choose EINSTAR 2 for blue-laser capture, faster acquisition, and dark or reflective engineering surfaces when a connected computer is acceptable.

EINSTAR VEGA vs EINSTAR Rockit

The EINSTAR VEGA vs EINSTAR Rockit comparison separates all-in-one scanning from a more automotive- and engineering-oriented hybrid scanner.

The EINSTAR Rockit uses 38 crossed blue laser lines, 7 parallel blue laser lines, and IR VCSEL. It is especially relevant to vehicle parts, mechanical components, dark surfaces, and marker-free laser scanning on suitable geometry.

Choose VEGA for standalone general-purpose scanning and Rockit when blue-laser engineering or automotive capture is the priority.

EINSTAR VEGA vs Revopoint MIRACO Plus

The EINSTAR VEGA vs MIRACO Plus comparison is the closest all-in-one matchup.

The Revopoint MIRACO Plus is also standalone and includes 32 GB RAM, a 5000 mAh battery, and a 48 MP RGB camera. It additionally publishes 0.04 mm single-frame accuracy, a 0.02 mm + 0.05 mm × L photogrammetric length-accuracy workflow, and 2× infrared optical zoom.

VEGA is lighter at 535 g, offers a 1500 mm maximum Fast Mode working distance, and provides 512 GB SSD storage.

Choose VEGA for lighter standalone scanning, longer working distance, and more storage; choose MIRACO Plus when published measurement specifications and photogrammetric large-object workflows matter more.

EINSTAR VEGA vs Creality Pika

The EINSTAR VEGA vs Creality Pika comparison separates standalone processing from a lighter host-assisted dual-light scanner.

The Creality Pika combines 7 parallel blue laser lines with NIR structured light. Creality publishes up to 0.03 mm accuracy in blue-laser mode and up to 110 FPS on a compatible PC.

Pika weighs about 260 g and uses replaceable batteries. VEGA is heavier but integrates the display, 32 GB RAM, 512 GB SSD, and on-device processing.

Choose VEGA when independence from a phone or computer matters most; choose Pika for lower weight, blue-laser detail, replaceable batteries, and higher PC-connected frame rates.

Which EINSTAR VEGA Alternative Fits Best?

• EINSTAR 2: better for faster blue-laser + IR capture with a computer.
• EINSTAR Rockit: better for automotive, engineering, dark surfaces, and blue-laser workflows.
• Revopoint MIRACO Plus: better for standalone scanning with published measurement and photogrammetric specifications.
• Creality Pika: better for very lightweight dual-light scanning and high PC-connected frame rates.
• CR-Scan Raptor Pro: better when published 0.02 mm-class blue-laser accuracy and mixed engineering capture are more important than standalone operation.
• EINSTAR VEGA: better when scanning, processing, color capture, display, storage, battery power, and wireless use need to live in one handheld device.

Price and Availability

EINSTAR VEGA starts from US$1,699. Approximate regional equivalents: North America: US$1,699 / C$2,357 · Europe: €1,460 / £1,254 · Middle East: AED 6,240 · Australia: A$2,402 · India: ₹162,595.

Available through EINSTAR and regional sellers. Final pricing varies by taxes, shipping, reseller pricing, and promotions. Currency conversions are approximate.

Limitations and Practical Considerations

• No universal numerical VEGA accuracy value is currently published; 0.05 mm is HD point distance, not accuracy.
• VEGA uses infrared MEMS/VCSEL rather than blue laser, so laser-focused engineering users may prefer another scanner.
• Fast Mode trades finer point spacing for longer working distance.
• The 5000 mAh battery is built in rather than swappable.
• IP50 is not waterproofing.
• Transparent, mirror-like, or highly reflective objects may still require preparation.
• The 48 MP RGB camera improves texture capture, not geometric accuracy.
• Wi-Fi 6 and USB Type-C are confirmed interfaces; Bluetooth is not listed.
• No standardized maximum field-of-view value appears in the current official public specification table.
